Product Contemporary

• Highest operational comfort due to use of shootbolt locking mechanism (compared to use of mushroom cam system).
• Steel reinforcement of vertical stiles at mechanism will minimize risk of warping in height.
• Double weather-stripping (or barrier), continuous at corners to bronze threshold and at hinges achieve highest performance regarding air leakage , water resistance and noise protection.
• Wet glazing method, no visible nails in glazing stops.
• Additional features include motorlocks, magnetic locks, full concealed mechanical door closer, adjustable heavy duty friction holder with automatic hold open and deadstop function, full door motorization with push and go function are available in accordance with our Impact test certifications.

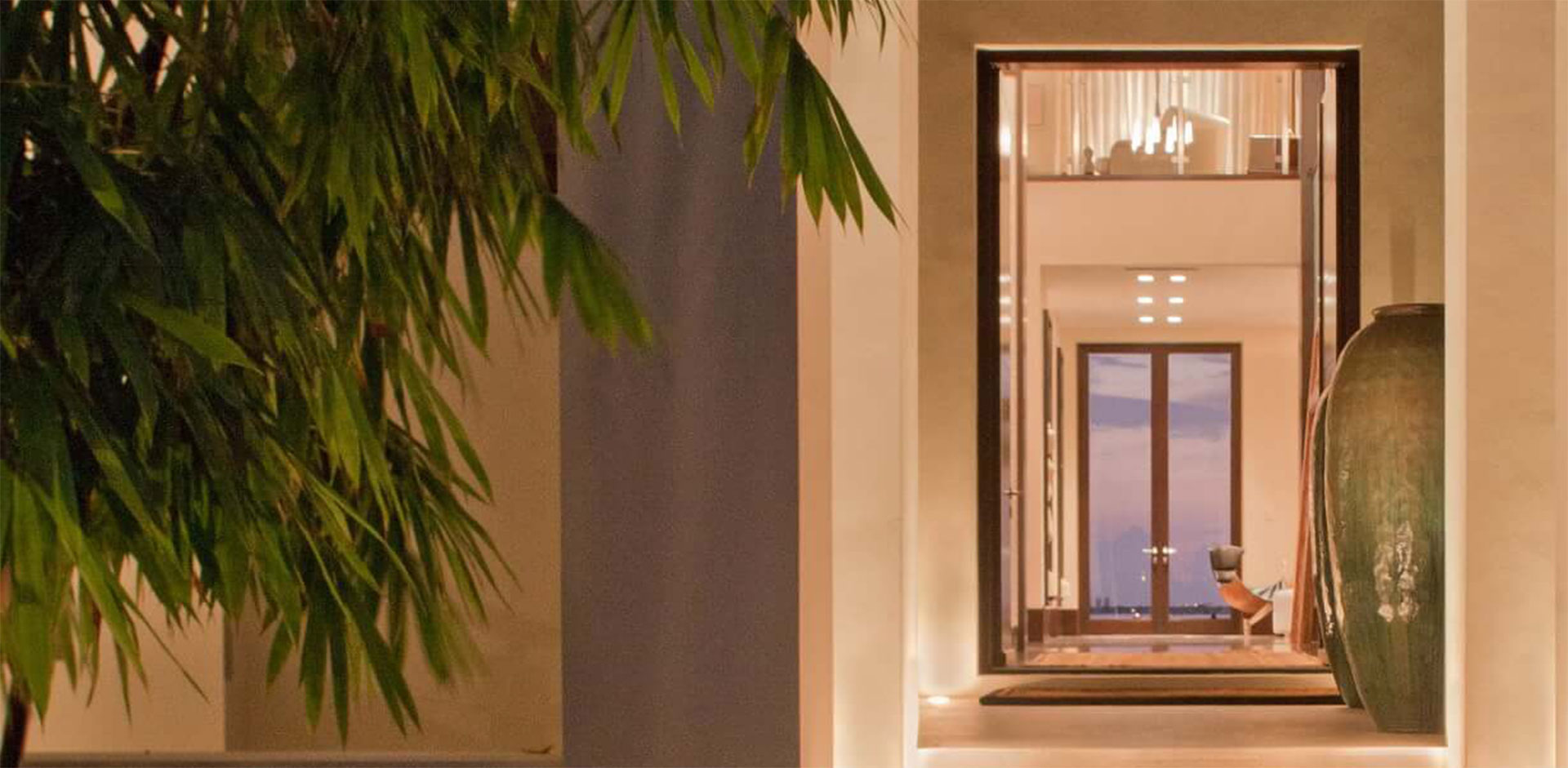

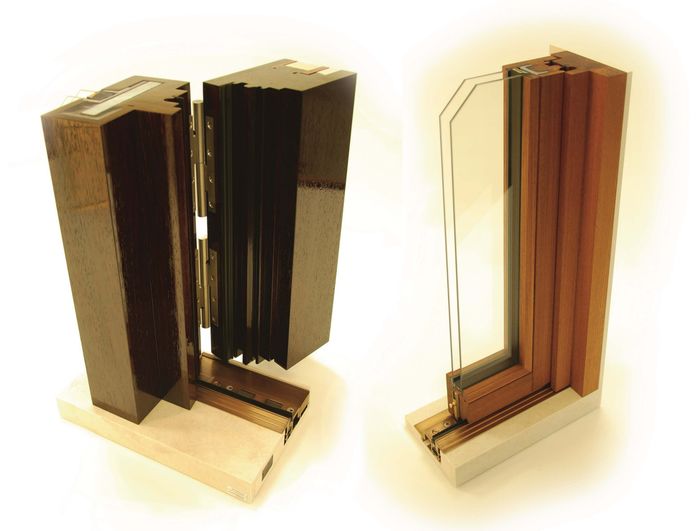

Left: Inswing Door in flush design and in wood species Wenge (all options available) with extra low bronze inswing threshold.

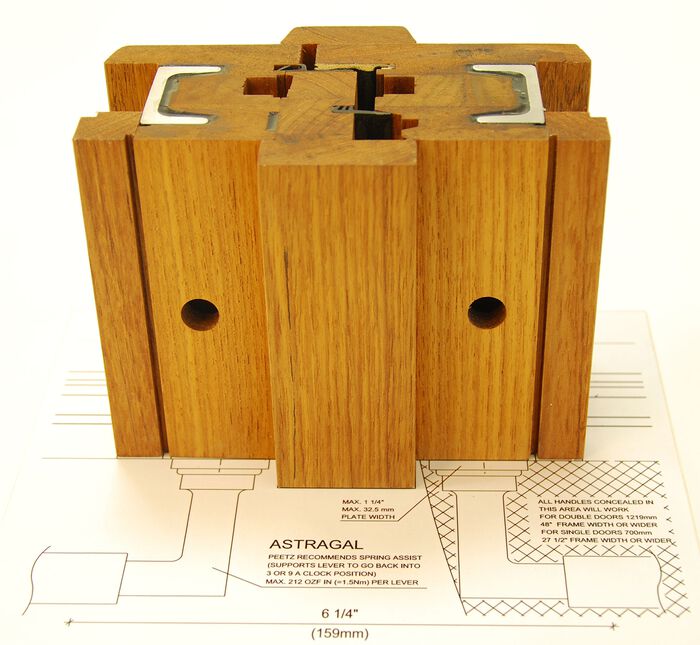

Right: Minimalist Door in wood species Burmese Teak with tung oil finish (optional). Approved for ultra narrow dimensions: At astragal: 6 ¼” (159 mm), vs standard 7¾” (197 mm)
At jamb: 2 1/8” (54 mm), vs standard 3” (76 mm)
Allows for 1 ¼” plates/escutcheons (vs standard 1 3/4”= 45 mm) without projecting into glazing-stop.

• Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
• Ultra narrow dimensions,
  At astragal: 4 15/16” (126 mm)
  At jamb: 2 15/16” (74 mm)
• Handle centered on astragal at meeting stile.
• Consistent profile width all around.

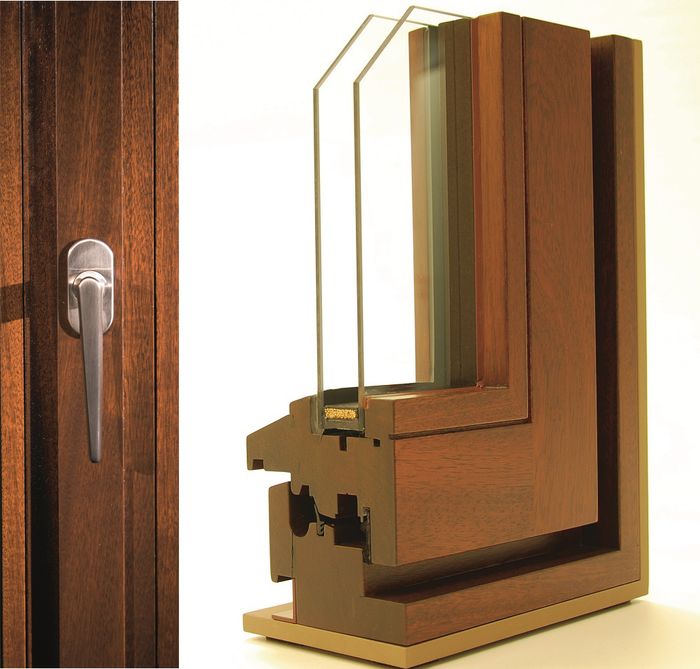

• Hardware completely hidden and concealed, no visible hinges.
• Shown displays are in wood species African Sipo Maho gany.
• Triple weather-stripping (or barrier), achieve highest per formance regarding air leakage , water resistance and noise protection.
• Superior integrated drainage without the use of cladded aluminum rainguard extrusions at sill.
• Wet glazing method, no visible nails in glazing stops.
• Full motorization for tilt operation concealed and recessed available.

Miami Dade County approved at 75 psf design pressure for Large Missile Impact.

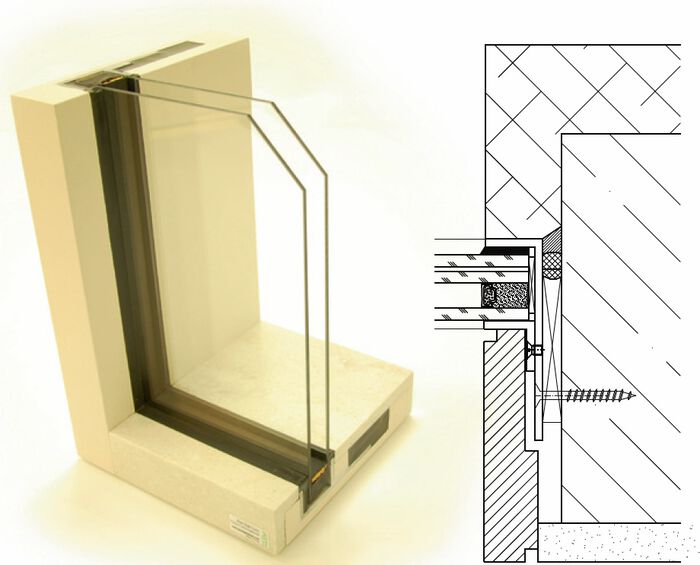

Direct Set:

• Max. Size per approval:
  PVB Glass-Type: 75”x 96” or 50”x144”
  or third party engineering for other dimensions available.
• Mahogany frame, bronze cladding optional.

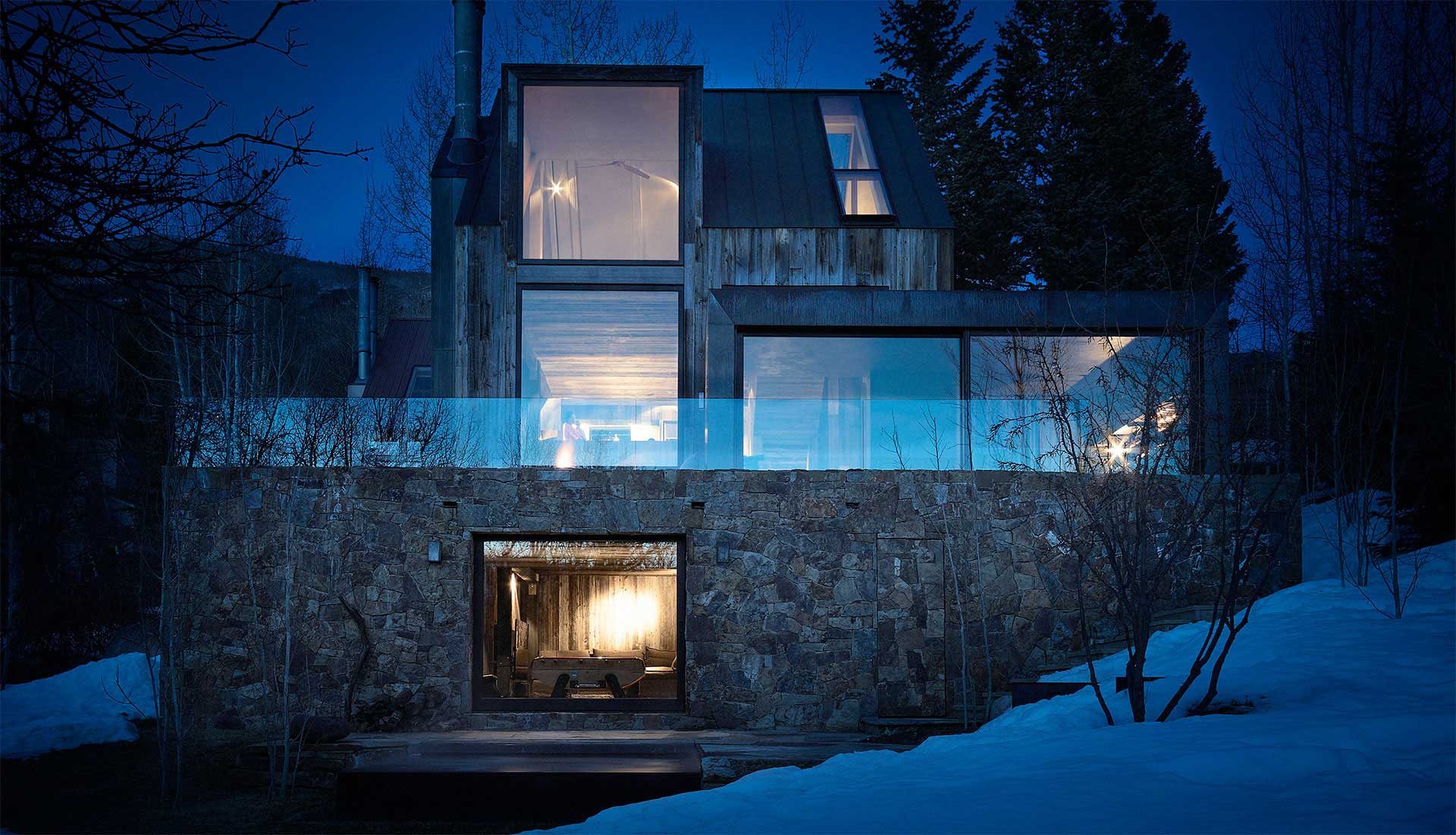

Fixed XXL Glazing:

• Max. Size per approval:
  SGP Glass-Type: 99”x132” or 91”x144”
  PVB Glass-Type: 78 ½”x132” or 72”x144”
  or third party engineering for other dimensions available.
• Aluminum system, mahogany or bronze cladding optional.
• Allows for frameless glass installations as shown on left.

• Miami Dade County approved at 70 psf design pressure for Large Missile Impact.

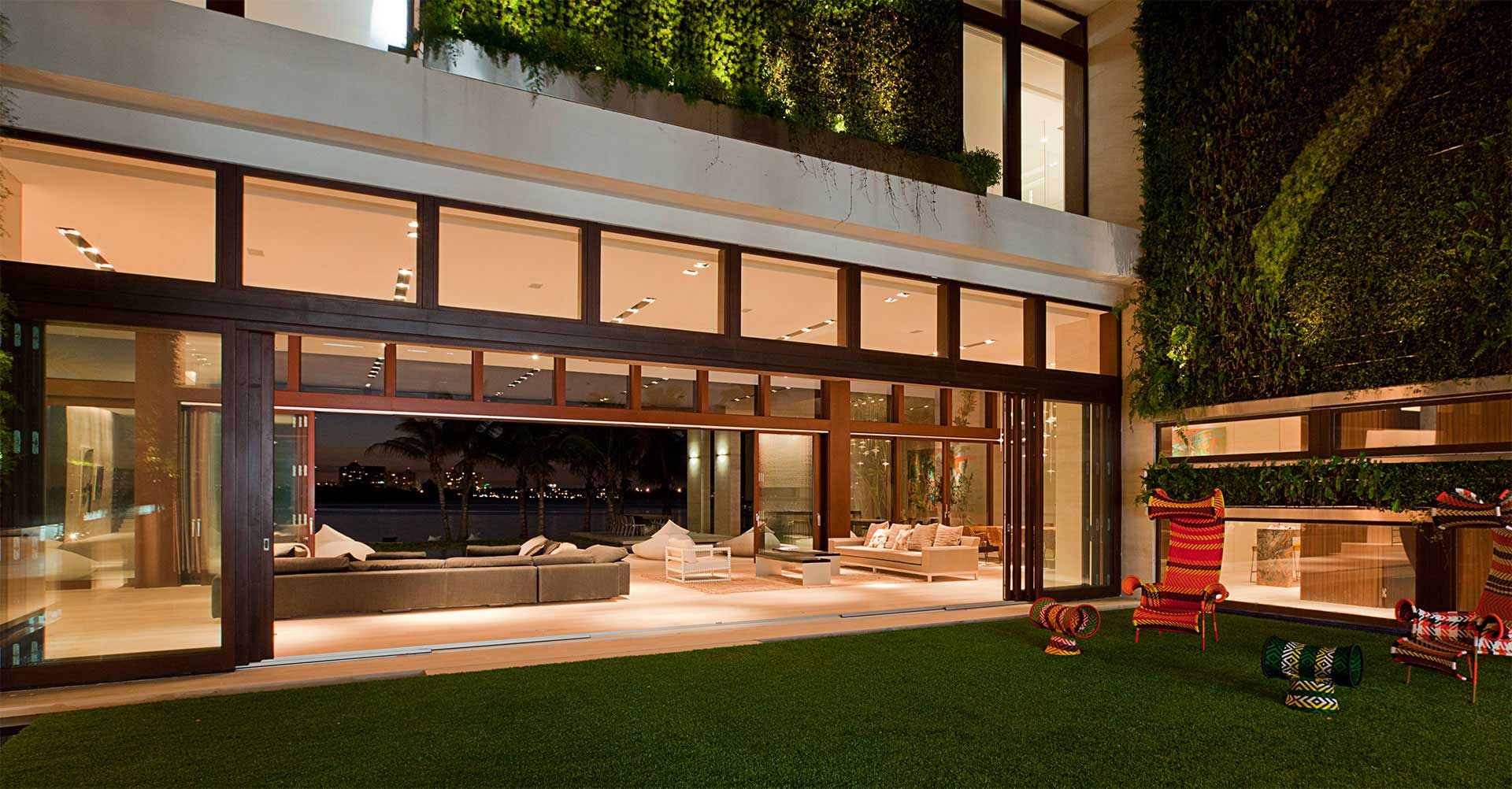

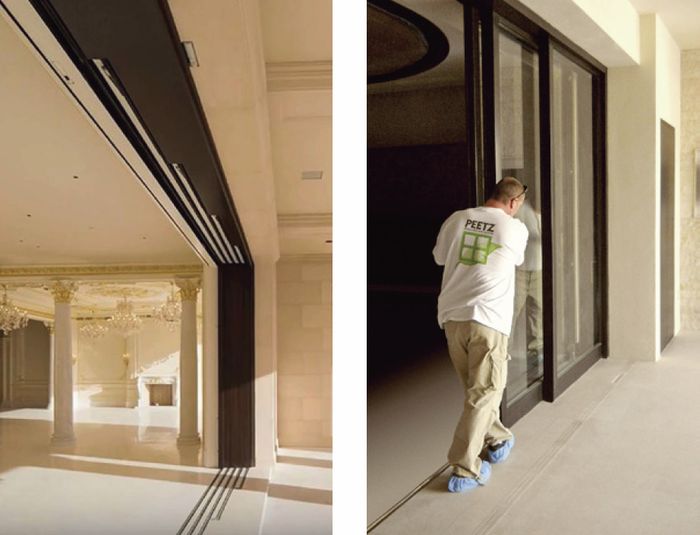

• Max. size per approval: 5’-2” x 11’, or third party engineering for other dimensions available.
• Unlimited number of panels.
• Unlimited number of tracks.
• Steel reinforcement of vertical stiles at mechanism will minimize risk of warping in height.
• Standard threshold in aluminum.
• Aluminum threshold can be cladded in Bronze (optional).
• Recessed drainage and flush threshold with an offset from interior to exterior floor = 0 available. Track projects only 3/16” above the finished floor and allows for modular threshold. All tested and approved for Miami Dade County.
• Full motorization for vertical lift and horizontal sliding operation available.
• 90° or custom angles cornerless layout available.
• Full flush pocketing or non pocketing.
• Different wood species available.
• Bronze cladding available.

• Ultra narrow dimensions at astragal: 6 ¼” (159 mm) available. These dimensions are flexible and can be increased for example to the standard 7 ¾” (197 mm) to allow for more hardware options.
• Steel reinforcement of vertical stiles at mechanism will minimize risk of warping in height.
• Consistent and uniform design throughout the door. All meeting stiles regardless if hinged or true double French door meeting stiles show the same symmetrical design and dimensions.
• French Door Concept:
  - Same bronze threshold as swing doors with the same off set from interior to exterior floor.
  - French/swing door access for easy exit and entry.
  - Easy operation of all panels, no flushbolts and no loose evers.
  - Highest operational comfort due to use of shoot bolt locking mechanism (compared to use of mushroom cam system).
  - All strikeplates are custom designed and fully adjustable. Due to the exposure we use only the highest grade stainless steel available ASTM 316 TI.
  - Tested and approved ADA threshold available to meet me ans of egress. Miami Dade County approved at 70 psf design pressure for Large Missile Impact.
• Radius/curved layouts available.
• 90° or custom angles cornerless layout available.
